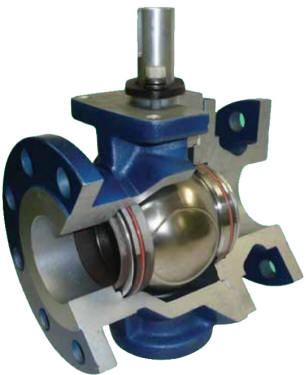

Fire-Safe Metal Seated Ball Valve Design Overview



Fire-safe metal seated ball valves are engineered for applications where safety, durability, and reliability under extreme conditions are critical. These valves are designed to maintain sealing integrity during and after fire exposure, preventing external leakage and internal blow-by. Their construction provides dependable shut-off performance in severe service conditions such as high temperatures, abrasive media, and corrosive environments.



Core Design Features

1. Metal-to-Metal Sealing

   Unlike polymer-seated valves, fire-safe metal seated valves employ precision-lapped metallic seats and balls. This configuration ensures continuous operation at temperatures up to 1,200°F (650°C) without seat degradation. The metal interface delivers Class IV, V, or VI shut-off performance per ANSI/FCI 70-2 standards.

2. Graphite Sealing and Fire Safety

   High-temperature graphite packing and body gaskets replace elastomeric components that could fail under fire exposure. These flexible graphite materials guarantee zero external leakage and sustain full sealing capability even after prolonged exposure to high heat, fulfilling fire-safe test specifications (BS 6755 Part 2 / API 607 equivalent).

3. Spring-Loaded and Scraper Seat Designs

   • Spring-Loaded Seats (P-Type): Maintain constant pressure between the ball and seat, accommodating thermal expansion while ensuring tight sealing under fluctuating conditions.

   • Scraper Seat Design: Ideal for slurry or fouling media applications, preventing solids accumulation on the sealing surface and extending operational life.

4. Anti-Static and Pressure Integrity

   All components maintain electrical continuity through inherent inter-component conductivity, eliminating the need for separate anti-static devices. The body and trim materials—typically ASTM A351 CF8M stainless steel or ASTM A216 WCB carbon steel—withstand high pressures (up to 6,000 PSI) and cyclic stress without distortion.

5. Fire-Safe Construction Standards

   • Our metal seated valves conform to multiple design and performance standards:

   • API 6D / API 608 / API 598

   • ANSI/ASME B16.10, B16.34, B31.1, B31.3

   • ISO 15848-1 (fugitive emission testing)

   • NACE MR01-75 (corrosion resistance for sour gas service)



Material and Coating Technologies

• Stellite® and Tungsten Carbide Coatings: Provide exceptional hardness (up to 72 Rc) and wear resistance against erosion and cavitation.

• Hard Chrome Plating: Reduces friction and improves corrosion resistance up to 2,000°F.

• Nitriding Treatments: Enhance surface hardness for stainless steel components in high-cycle applications.

• Electroless Nickel and Zinc Phosphate Coatings: Offer supplementary protection in chemically aggressive or marine environments.



Typical Fire-Safe Applications

• Power Generation

  • Main steam isolation valves

  • Boiler feedwater systems

  • Superheater spray control

• Oil and Gas / Refining

  • Hydrogen isolation valves

  • Coker units and catalyst slurry lines

  • Heavy oil and hydrotreater service

• Industrial Processing

  • High-temperature chemical process isolation

  • Pulp recovery systems handling black, green, or white liquors

  • Slurry or fine-solid processing in mining and ceramics



In all cases, the design objective is reliable shut-off and zero external leakage even during catastrophic thermal events or system fires.



Advantages of Fire-Safe Metal Seated Valves

• Rated for temperatures up to 1,200°F and pressures exceeding 6,000 PSI

• Field-repairable three-piece body options for in-line maintenance

• Class IV–VI shut-off performance verified by hydrostatic testing

• Graphite encapsulated spiral-wound body seals prevent fugitive emissions

• Available in flanged, threaded, and welded connections across ANSI Classes 150–2500



Fire-safe metal seated ball valves provide unparalleled safety and performance in severe industrial environments. Their engineered sealing systems, robust metallurgy, and compliance with international standards ensure reliable operation even under direct flame exposure. These valves are indispensable for power generation, petrochemical, refining, and high-temperature process industries requiring guaranteed isolation integrity.
