Actuator Mounting Brackets and Couplings

FDPP PDF File ImageActuator brackets and couplings catalog

Need help selecting the correct bracket and coupling for your valve and actuator?

Call 908.362.9981 Submit Inquiry Form

We supply actuator mounting brackets and shaft couplings for ball valves and butterfly valves. Standard ISO mounting patterns are available, along with custom bracket designs when required.

actuator to valve couplings actuator mounting bracket with coupling

Ball Valve Actuator Mounting BracketStandard ISO Mounting Patterns

We offer brackets for common ISO actuator patterns including F03, F04, F05, F07, and F10. These brackets are suitable for most ball valves and butterfly valves.

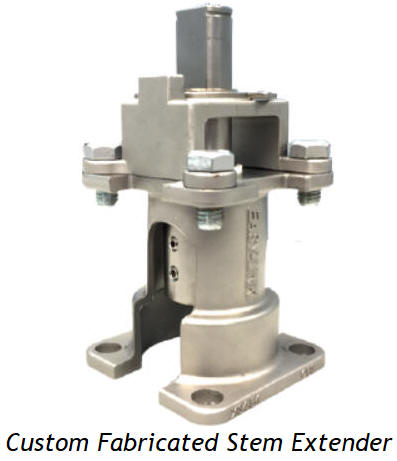

Custom Bracket Design

When a standard bracket does not fit your specific valve and actuator combination, we can design and manufacture custom mounting brackets.

Shaft Couplings

We provide a range of actuator shaft couplings to properly connect the actuator drive to the valve stem. Both standard and custom sizes are available.

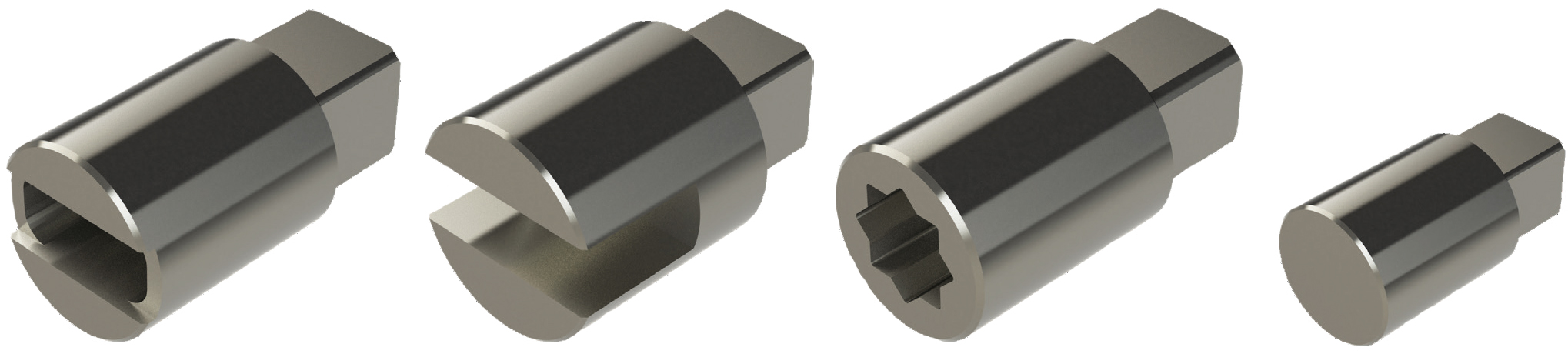

Ball Valve and Actuator Couplings

Do you need a standard ISO bracket or a custom solution? Call 908.362.9981 or submit the inquiry form for assistance selecting the correct components.
